Regulator Assembly
Shop Now Pay Later
$44.99
Final Sale: may not be returned or exchanged
This item is not eligible for return or exchange.
Want us to let you know when the item you wanted is back in stock?
By submitting, I confirm I have read and accept your Privacy Statement and I would like to receive marketing and/or promotional emails from Coleman.
Product Details
Description

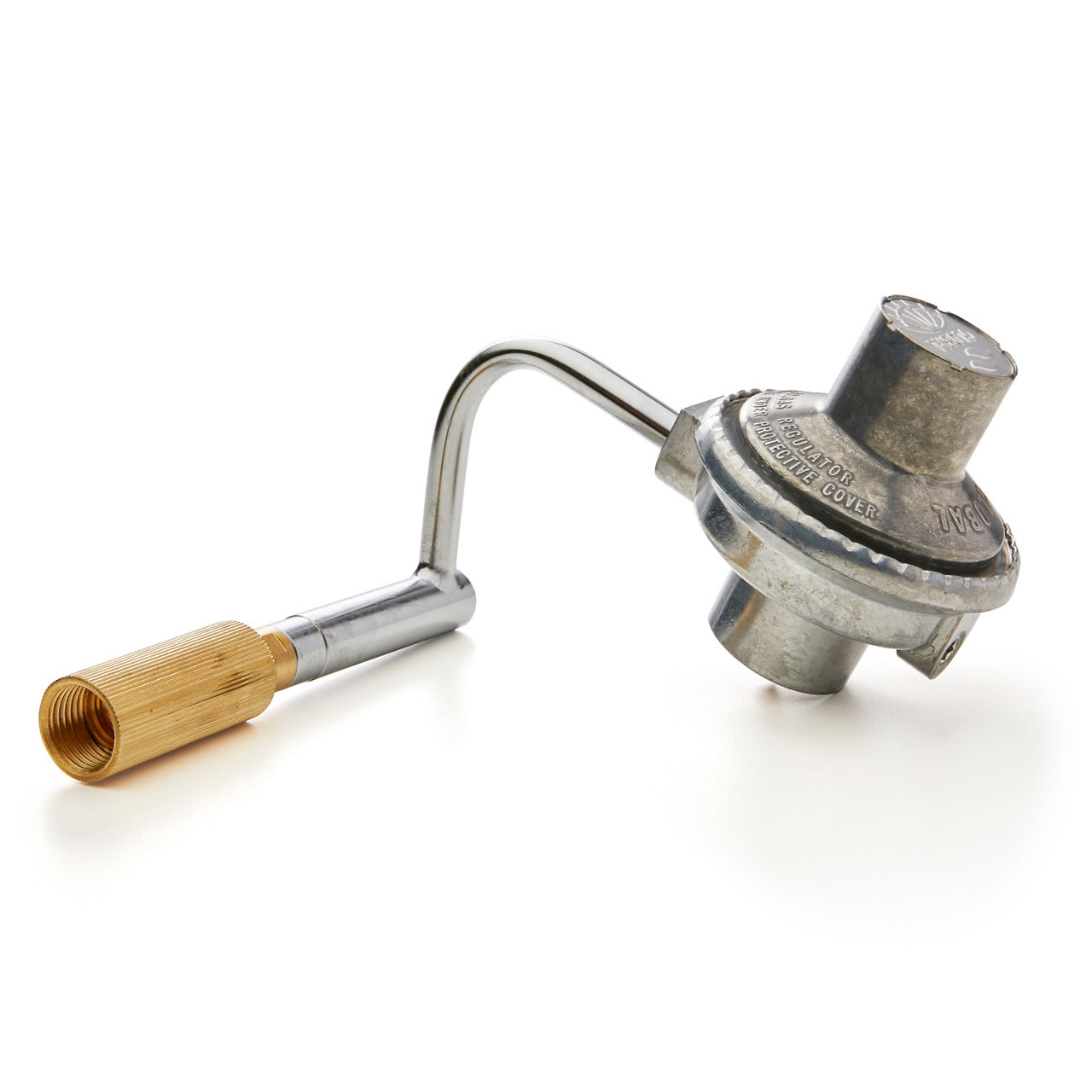

Great campsite meals start with an efficient grill. This replacement regulator assembly keeps your camp grill performing optimally. It works with RoadTrip® grill models 9949 and 9949A and some 9941 model grills. Refer to your old regulator to see if you need this one or the clip-on version: model 99425251. You’ll find the model number inside the lid or on the legs of your grill.
- DIMENSIONS: 12.8” x 12.38” x 4.3”
- PACKAGE CONTENTS: 1 regulator assembly
- COMPATIBILITY: Works with RoadTrip® grill models 9949 and 9949A and some 9941 model grills. Refer to your old regulator to see if you need this one, or the clip-on version: ¬-model 99425251
Specifications
-
SKU # 5010000743
-
Model # 5010000743
-
Exterior Height (inches): 4.300
-
Exterior Length (inches): 12.800
-
Exterior Width (inches): 12.380
Rated 5 out of
5
by
Gray from
Super fast service!
Just want I needed and super fast service - thank you!
Date published: 2023-09-06
<!--begin-bvseo-questions-->
<!--begin-questions-->
<div id="bvseo-questionsSection">
<div class="bvseo-question-answer" data-questionid="4936942">
<h2 class="bvseo-question">
NXT voyager RV 9955 series will this enable use of 16.4oz canisters?
</h2>
<div class="bvseo-question-detail">
</div>
<div class="bvseo-author">Asked by: JenMorri</div>
<div class="bvseo-answer" data-answerid="3777258">
Hello Jen! Thank you for your question. Yes, the Coleman Regulator Assembly is designed for use with 16.4 oz disposable propane cylinders, provided that your appliance is compatible with this type of connection. If your NXT Voyager RV 9955 Series is designed to accept a Coleman regulator and 16.4 oz propane cylinders, then this regulator would enable that connection. If there&rsquo;s anything else we can assist you with, please don&rsquo;t hesitate to reach out to our official website. We&rsquo;re available Mon.-Fri. 9 am &ndash; 5 pm Eastern Time. Thank you! Coleman Consumer Care
<div class="bvseo-author">Answered by: Coleman US Consumer Team</div>
<div class="bvseo-pubdate">Date published: 2026-09-01</div>
</div>
</div>
<div class="bvseo-question-answer" data-questionid="4935929">
<h2 class="bvseo-question">
Where do you get the red washer that is inside the brass fitting
</h2>
<div class="bvseo-question-detail">
</div>
<div class="bvseo-author">Asked by: Paul55</div>
<div class="bvseo-answer" data-answerid="3775849">
Hi Paul, Thank you for your question. Unfortunately, the red washer is not available as a separate replacement part. The regulator is sold as a complete assembly, and individual components of the regulator are not offered separately. If you need further assistance, please reach out to us via Live Chat or the Contact Us form on our official website. We&rsquo;re available Monday to Friday, from 9:00 AM to 5:00 PM Eastern Time. We look forward to assisting you! Thank you, and please stay safe! Coleman Consumer Care
<div class="bvseo-author">Answered by: Coleman US Consumer Team</div>
<div class="bvseo-pubdate">Date published: 2026-08-30</div>
</div>
</div>
<div class="bvseo-question-answer" data-questionid="4932291">
<h2 class="bvseo-question">
Will this fit a cascade classic
</h2>
<div class="bvseo-question-detail">
</div>
<div class="bvseo-author">Asked by: Ron97</div>
<div class="bvseo-answer" data-answerid="3773270">
Hi Ron, Thanks for your question about the Coleman Regulator Assembly, Model #5010000743. This regulator is compatible with RoadTrip&reg; Grill models 9949, 9949A, 9941-700, 9941-779, 9949-451, 9949A451, and 9949 Series. Some 9941 models may require the clip-on regulator instead, so the Cascade Classic is not listed as compatible with this part. We&rsquo;d love the opportunity to assist you further, so please don&rsquo;t hesitate to contact us directly through our official &quot;Contact Us&quot; page or by calling 1-800-835-3278. Thank you! &mdash;Coleman Consumer Care
<div class="bvseo-author">Answered by: Coleman US Consumer Team</div>
<div class="bvseo-pubdate">Date published: 2026-08-26</div>
</div>
</div>
<div class="bvseo-question-answer" data-questionid="4919531">
<h2 class="bvseo-question">
Compatible with Coleman Roadtrip 225? I need a replacement for it.
</h2>
<div class="bvseo-question-detail">
</div>
<div class="bvseo-author">Asked by: Themakew</div>
<div class="bvseo-answer" data-answerid="3758640">
Hello, Thank you for your inquiry regarding our Regulator Assembly. This regulator is not compatible with the RoadTrip 225 grill, but with the older models (such as the 9941 and 9949 series). We'd be happy to help you find the correct replacement regulator for your RoadTrip 225. To confirm the right part, please reach out to us with the following details: - The model number from the sticker on your grill - A photo of the regulator connection where the propane cylinder attaches. - A photo of your current regulator, if you still have it. You can reach out to us via the &quot;Contact Us&quot; form on our official website. We&rsquo;re available Mon.-Fri. 9am -5pm Eastern Time. Thank you! Coleman Consumer Care.
<div class="bvseo-author">Answered by: Coleman US Consumer Team</div>
<div class="bvseo-pubdate">Date published: 2026-08-06</div>
</div>
</div>
<div class="bvseo-question-answer" data-questionid="4904684">
<h2 class="bvseo-question">
Is this model compatible with Coleman RoadTrip 9901 Tabletop Grill GEN2. The manual indicates that it is a Cavanga type 798 regulator.
</h2>
<div class="bvseo-question-detail">
</div>
<div class="bvseo-author">Asked by: bikerteknik</div>
<div class="bvseo-answer" data-answerid="3744215">
Hello! Thank you for your inquiry. The regulator you referenced is listed as compatible with RoadTrip&reg; grill models 9949 and 9949A, and some 9941 model grills. To determine whether it is compatible with your Coleman RoadTrip&reg; 9901 Tabletop Grill GEN2, we recommend comparing it with your existing regulator, as compatibility can vary by model. If you are unsure, please contact us directly with your grill's complete model number, and we will be more than happy to assist you in identifying the correct regulator for your unit. Should you need product support or have additional concerns, don&rsquo;t hesitate to contact our team via our official support page or LiveChat. We&rsquo;re available Monday&ndash;Friday, 9 AM &ndash; 5 PM ET. Thanks! Coleman Consumer Care
<div class="bvseo-author">Answered by: Coleman® Consumer Care</div>
<div class="bvseo-pubdate">Date published: 2026-07-14</div>
</div>
</div>
<div class="bvseo-question-answer" data-questionid="4871495">
<h2 class="bvseo-question">
Will this regulartor assembly wrok with Road Trip Excursion 9406A so I can use a larger tank? There are problems disposing of the empty green cans!
</h2>
<div class="bvseo-question-detail">
</div>
<div class="bvseo-author">Asked by: Kathy653</div>
<div class="bvseo-answer" data-answerid="3701100">
Hello Kathy, Thank you for your inquiry about our Regulator Assembly. This regulator assembly is not compatible with your RoadTrip Excursion 9406A, which is intended for use with 1 lb propane cylinders when using this type of regulator. For disposal of the empty green cylinders, we recommend contacting your local municipality for guidance on safe disposal or recycling options. If you have more questions, please reach out to us via the &quot;Contact Us&quot; form on our official website. We&rsquo;re available Mon.-Fri. 9am -5pm Eastern Time. Thank you! Coleman Consumer Care.
<div class="bvseo-author">Answered by: Coleman Customer Care</div>
<div class="bvseo-pubdate">Date published: 2026-05-13</div>
</div>
</div>
<div class="bvseo-question-answer" data-questionid="4861854">
<h2 class="bvseo-question">
What are the threads on this regulator? 7/16&quot; UNEF?
</h2>
<div class="bvseo-question-detail">
</div>
<div class="bvseo-author">Asked by: Jake Boston</div>
<div class="bvseo-answer" data-answerid="3689752">
Hello, thank you for your inquiry. On the regulator assembly 5010000743, the outlet thread is 7/16&quot;-20 UNEF (you may also see it referred to more simply as 7/16 UNEF in the field). If you have any more questions, please reach out to us via our Contact Us form on our website https://www.coleman.com/support/contact-us. We&rsquo;re available Mon.-Fri. 9 am - 5 pm Eastern Time. Thank you! Coleman&reg; Consumer Care
<div class="bvseo-author">Answered by: Coleman® Consumer Care</div>
<div class="bvseo-pubdate">Date published: 2026-04-27</div>
</div>
</div>
<div class="bvseo-question-answer" data-questionid="4774923">
<h2 class="bvseo-question">
I need a regulator to fit a guide 5428. Will this work?
</h2>
<div class="bvseo-question-detail">
</div>
<div class="bvseo-author">Asked by: Smitty625</div>
<div class="bvseo-answer" data-answerid="3588414">
Hello. Thank you for reaching out to us. This Regulator Assembly works with RoadTrip&reg; grill models 9949 and 9949A and some 9941 model grills. Unfortunately we do not have the regulator for the 5428 but you can check retailers like Amazon as they may have it or ereplacementparts.com. The model number for the regulator is 5428-5651. If you have any more questions, please reach out to us via our Contact Us form on our website. We&rsquo;re available Mon.-Fri. 9am - 5pm Eastern Time. Thank you! Coleman&reg; Consumer Care
<div class="bvseo-author">Answered by: Coleman® Consumer Care</div>
<div class="bvseo-pubdate">Date published: 2025-11-27</div>
